Steel Rail
Steel rail, also known as railroad track or railway track, is a vital component of railway infrastructure that supports and guides railway vehicles, such as trains, trams, and subway cars. Steel rail provides a smooth, stable surface for trains to travel on, ensuring safe and efficient transportation of passengers and freight.
Contact us
Product Parameters

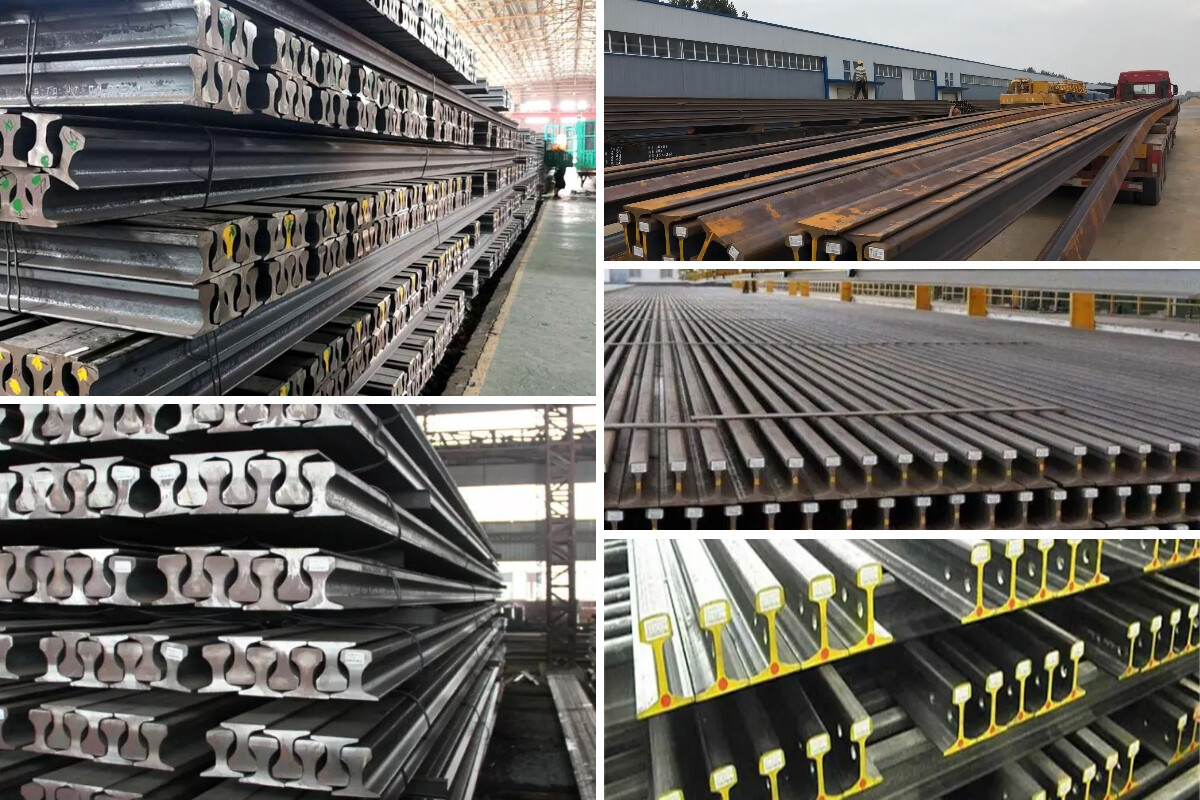

Product Display

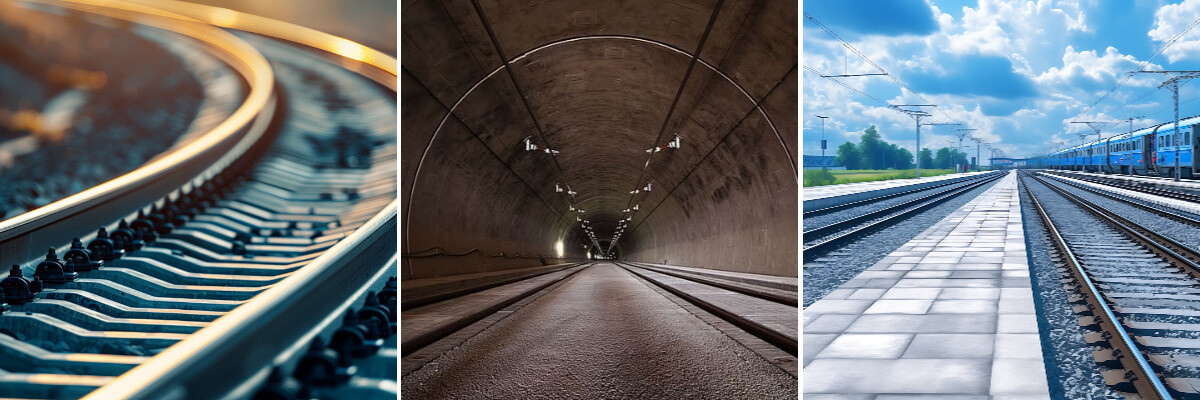

Application

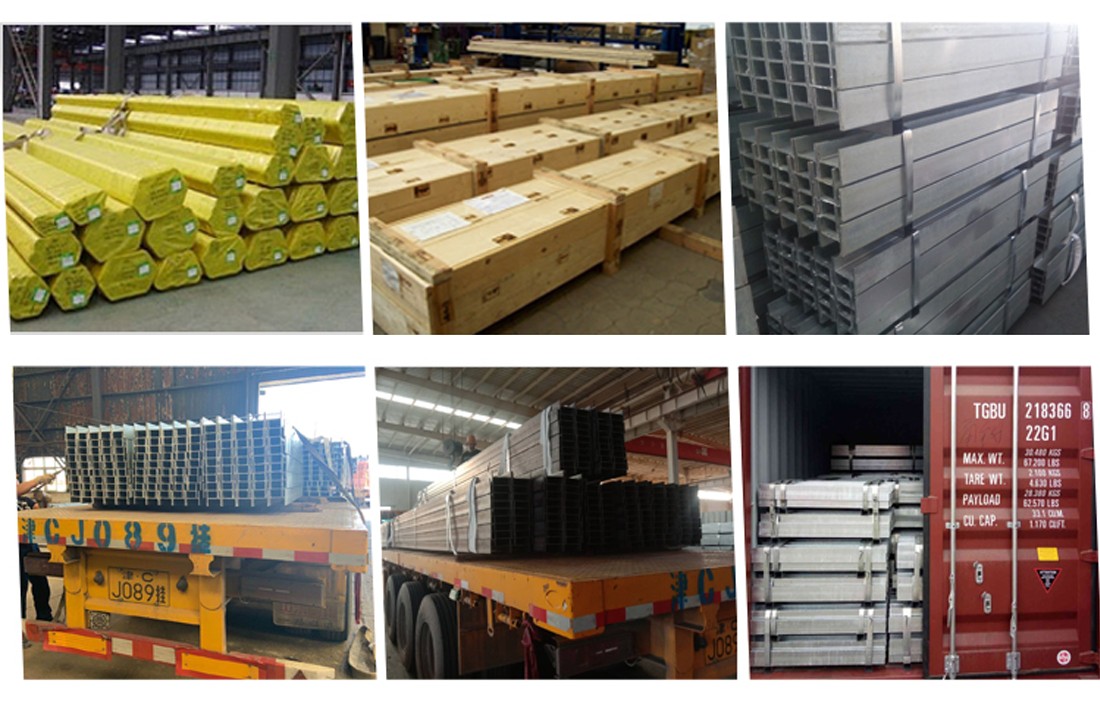

Package

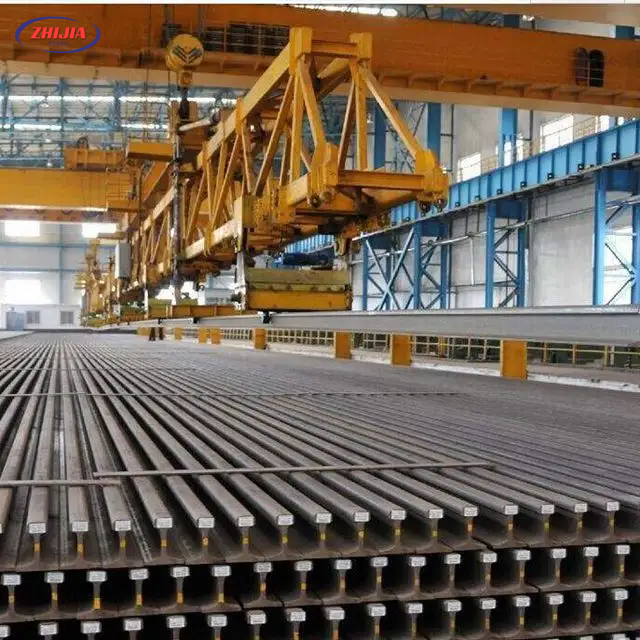

Factory Display
FAQ
Standard Sepc. Material   Typical Grade
UIC860 UIC54 700,900A,900B
UIC60
EN13674.1 5.00E+02 R200,R350HT,R260Mn,R35LHT,R320Cr,R370CrHT
5.40E+02
6.00E+02
6.00E+03
BS-11-1985 BS80A 700,900A,900B
BS90A
BS100A
AREMA 115RE SS,HH,LA,IH
136RE
ASCE60 U71Mn
ASCE85 U71Mn
GB   2585-2007 50kg/m U71Mn
60kg/m U75V
75kg/m
TB/T2344-2012 50kg/m U71Mn,U75V,U77MnCr
60kg/m U78CrV
75kg/m
GB   11264-1989 8kg/m Q235
12kg/m Q235
15kg/m 55Q, Q235
18kg/m 55Q, Q235
22kg/m 55Q, Q235
24kg/m 55Q, Q235
30kg/m 55Q, Q235
38kg/m 50Mn, U71Mn
43kg/m 50Mn, U71Mn
GB   Crane rails QU70 U71Mn
QU80 U71Mn
QU100 U71Mn
QU120 U71Mn


Standard: ASTMA1, AREMA
Size Dimension(mm) Weight Material Length (m)
Head(mm) Height(mm) Bottom(mm) Web(mm) (kg/m)
ASCE 25 38.1 69.85 69.85 7.54 12.4 700 6-12
ASCE 30 42.86 79.38 79.38 8.33 14.88 700 6-12
ASCE 40 47.62 88.9 88.9 9.92 19.84 700 6-12
ASCE 60 60.32 107.95 107.95 12.3 29.76 700 6-12
ASCE 75 62.71 122.24 122.24 13.49 37.2 900A/1100 12-25
ASCE 85 65.09 131.76 131.76 14.29 42.17 900A/1100 12-25
90RA 65.09 142.88 130.18 14.29 44.65 900A/1100 12-25
115RE 69.06 168.28 139.7 15.88 56.9 900A/1100 12-25
136RE 74.61 185.74 152.4 17.46 67.41 900A/1100 12-25
175LBs 109.86 152.4 152.4 38.1 86.8 900A/1100 12-25
Standard: BS11: 1985
Size Dimension(mm) Weight Material Length (m)
Head(mm) Height(mm) Bottom(mm) Web(mm) (kg/m)
50 O 52.39 100.01 100.01 10.32 24.833 700 6-18
60 A 57.15 114.3 109.54 11.11 30.618 900A 6-18
75 A 61.91 128.59 114.3 12.7 37.455 900A 8-25
75 R 61.91 128.59 122.24 13.1 37.041 900A 8-25
80 A 63.5 133.35 117.47 13.1 39.761 900A 8-25
80 R 63.5 133.35 127 13.49 39.674 900A 8-25
90 A 66.67 142.88 127 13.89 45.099 900A 8-25
100 A 69.85 152.4 133.35 15.08 50.182 900A 8-25
113 A 69.85 158.75 139.7 20 56.398 900A 8-25
Australian Standard Railway
standard:AS1085
Size Dimension Weight (kg/m) Length  Material
Head(mm) Height(mm) Bottom(mm) Web(mm) (m)
31KG 63.5 117.5 108 11.5 31.5 8-15 900A/1100
47KG 70 141.3 127 14.3 46.5
50KG 70 154 127 15 50.8
60KG 70 170 146 16.5 61
68KG 73.4 186 152 17.5 67.6
73KG 70 157 146 32 73.63
86KG 102 102 155 84.11 85.5
89KG 102 114 178 51 89.81


steel rail


steel rail


  • JIANGSU ZHIJIA Group Company  (1).png
  • JIANGSU ZHIJIA Group Company  (2).jpg
  • JIANGSU ZHIJIA Group Company  (3).jpeg
  • JIANGSU ZHIJIA Group Company  (3).jpg
  • JIANGSU ZHIJIA Group Company  (5).jpg
  • JIANGSU ZHIJIA Group Company  (10).jpeg

Q: Are You Manufacture or Trade Company?

A: We are the professional manufacturer of stainless steel products located in Shandong province, China. Welcome to contact us and visit our factory before you place orders.

Q: How do you guarantee the quality?

A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.

Q: Can I get free samples?

A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
